6.5. Systems under Test

6.5.1. Creating a System under Test
6.5.2. Bulk Actions
6.5.3. System under Test Details

The systems under test section allows maintenance of the systems under test in the selected project. A system under test is used to represent a version of a software product that can be tested.

The Systems under Test page allows the creation, removal and updating of systems under test and assigning them to categories. The displayed systems under test may be filtered and sorted as described in Section 5.2.6, “Filtering and Sorting” ( Figure 6.22).

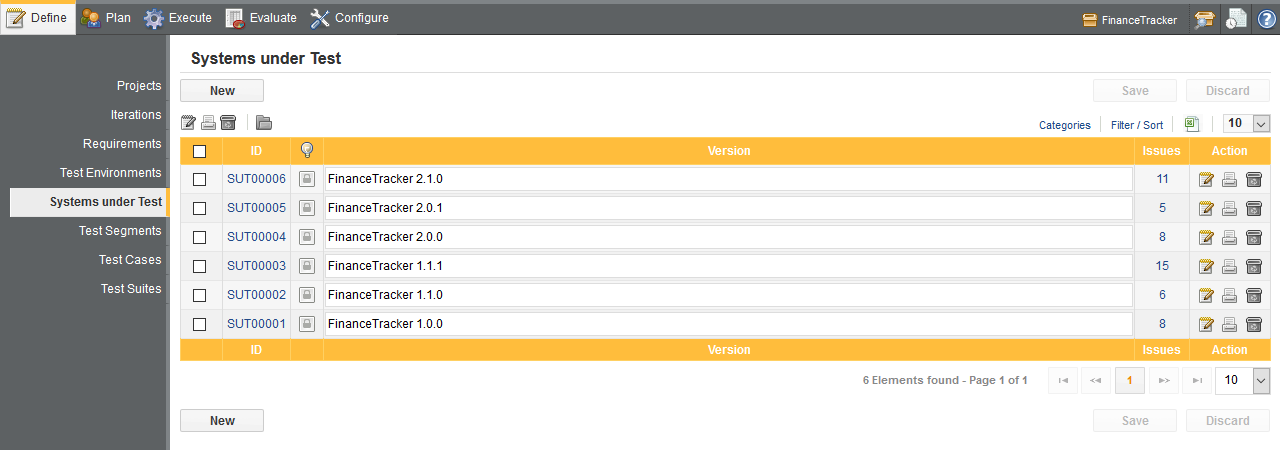

The Systems under Test Screen

Figure 6.22. The Systems under Test Screen


The Systems under Test screen shows a table with all of the systems under test in current project. The version of the system under test can be changed by clicking on the text field and editing it directly.

The leftmost column allows system under test to be selected for bulk actions. The uppermost checkbox is a global select button, which selects or deselects all elements shown in the table. Please note that the displayed elements are subject to the current search and catagorization criteria.

Systems under Test may be viewed on a printer-friendly page as described in Section 5.2.7, “Print Pages” as well as categorized as described in Section 5.2.8, “Categorization”.

6.5.1. Creating a System under Test

New systems under test may be created by clicking on the New button ( Figure 6.22). The system under test ID is automatically assigned by Klaros-Test­management and the version can be specified by the user. The system under test is created in the currently selected project.

Clicking on the delete icon removes the system under test.

[Note] Why is the Delete button disabled?

Systems under test which are already referenced by test runs cannot be deleted, so their delete icon is disabled ( ).

Clicking on the edit icon displays the details page of the system under test.

6.5.2. Bulk Actions

Some bulk actions are available on the Systems under Test page. Bulk actions are described in Section 5.2.11, “Bulk Actions”.

The bulk actions available on this page are: Edit, Print, Delete and Assign to category. The bulk action buttons can be found above the table on the left.

6.5.3. System under Test Details

This section allows in-depth editing of an individual system under test, including user defined properties. The executed test results and change history for the system under test are also visible in this section.

6.5.3.1. System under Test Overview

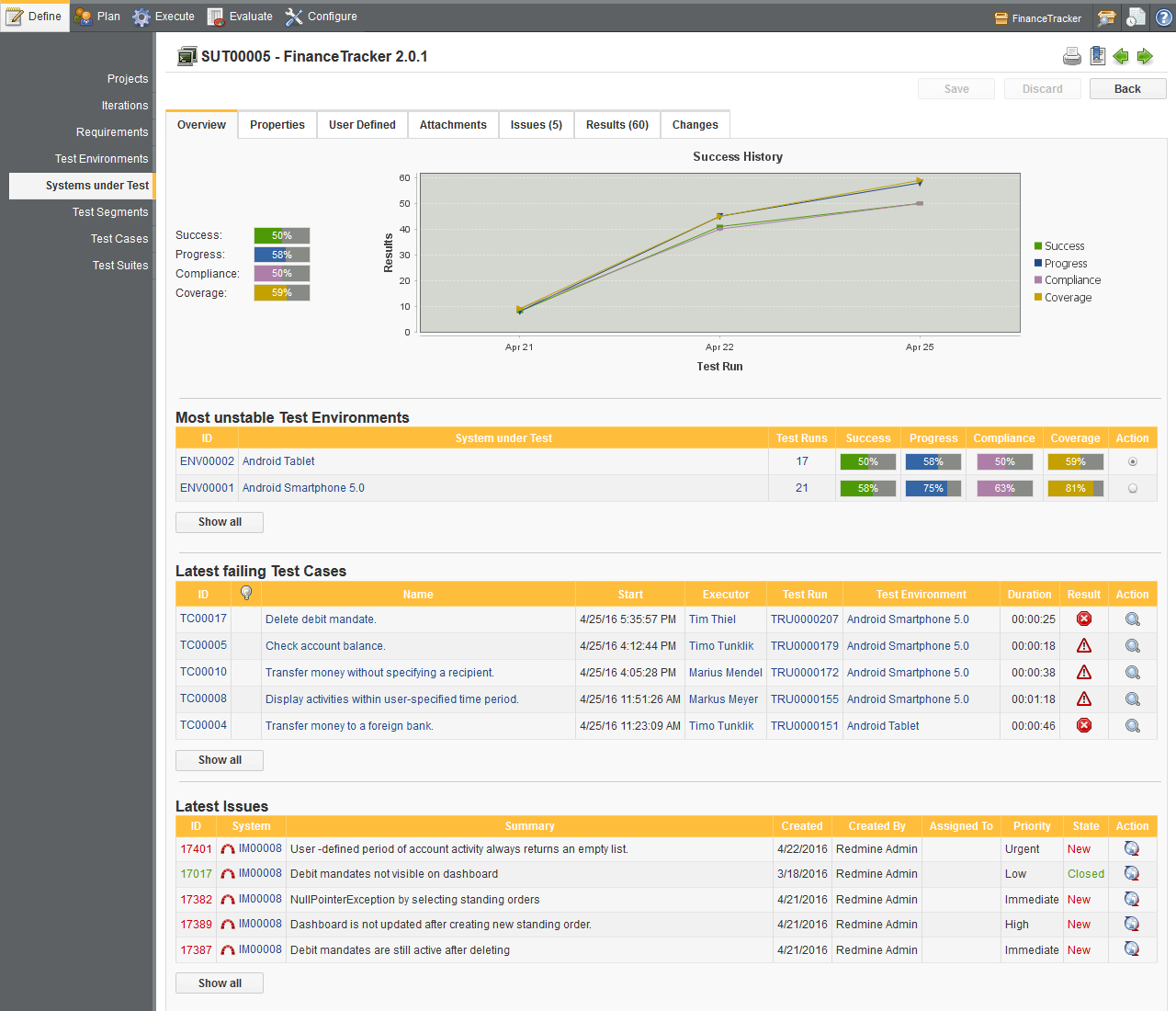

The System under Test Overview Tab

Figure 6.23. The System under Test Overview Tab


  • Success

    The success rate shows how many test cases have been successfully executed in this system under test.

  • Progress

    The progress rate shows how many test cases have been executed at least once in this system under test.

    [Note] Note

    In contrast to the success rate, the coverage rate considers only if a test case has been executed at least once in this test environment, regardless of the result (passed, failed, error).

  • Compliance

    The compliance rate shows how many test cases, which are part of this iterations requirements, have been successfully executed in this system under test.

  • Coverage

    The coverage rate shows how many test cases, which are part of a requirement, have been executed at least once in this system under test.

    [Note] Note

    In contrast to the compliance rate, the coverage rate considers only if a test case has been executed at least once in the iteration, regardless of the result (passed, failed, error).

  • Success History

    This graph shows changes in the compliance, coverage, progress and success rates of this test environment over time. The timeline is automatically adjusted depending on the given timeframe.

  • Most unstable Test Environments

    This table displays the test environments which have the lowest success and progress rates in conjunction with this system under test.

    [Note] Note

    This table is limited to five entries. The other test environments can be viewed by pressing the Show All button.

  • Latest failing Test Cases

    This table lists the test cases which recently have been failed during a test run for this system under test alongside with the appertaining test case result.

    [Note] Note

    This table is limited to five entries. The other system under tests can be viewed by pressing the Show All button.

  • Latest Issues

    This list shows the latest issues which have been created in conjunction with this system under test during test execution or linked to this system under test after its creation.

    [Note] Note

    This table is limited to five entries. The other system under tests can be viewed by pressing the Show All button.

6.5.3.2. User Defined Properties

User defined properties can be used to customize systems under test within Klaros-Test­management by adding custom fields. This process is described in Section 5.2.13, “User Defined Properties”.

6.5.3.3. Attachments

Attachments may be added to systems under test. This process is described in Section 5.2.12, “Attachments”.

6.5.3.4. Issues

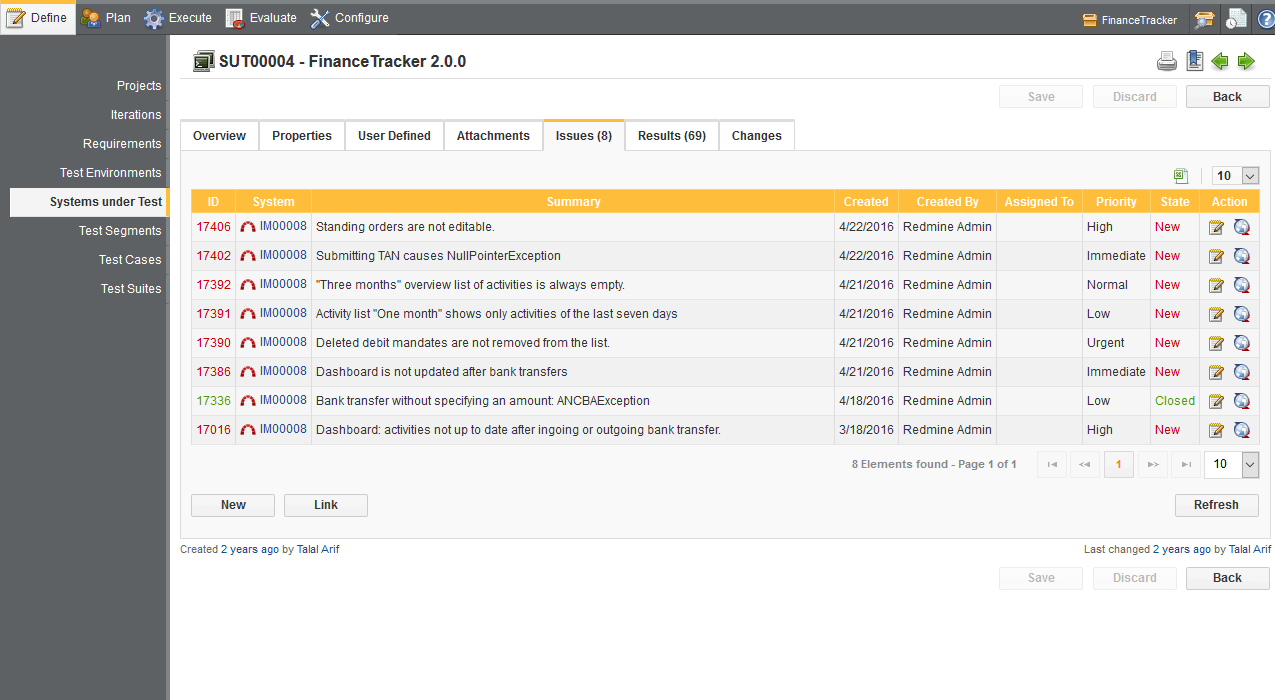

The Test Case Issues Screen

Figure 6.24. The Test Case Issues Screen


This tab lists all issues that have been linked to this system under test. Pressing the New button opens the Issue Details page ( Section 9.8.2, “Issue Details (Creating a new Issue)”), where new issues can be created and linked to this system under test. By pressing the Link button it is possible to link existing issues to this system under test ( Section 9.8.3, “Link Issues”).

6.5.3.5. Results

The result tab is further divided into a Test Runs, Test Case Results and a Test Suite Results tab showing the test results related to this system under test as described in Section 5.2.17, “Related Test Runs and Results”.

6.5.3.6. Bookmarking Systems under Test

Systems under test may be linked to from outside of Klaros-Test­management using the link on the bookmark icon. Right-click the icon and choose Copy Link Location (Firefox/Chrome) or the equivalent option.
