5.2. Executing Jobs with Test Suites

When the user starts the Execution of a Job which contains a Test Suite, they are brought to the first Test Case in the Test Case Screen (See figure Figure 5.1, “The Test Case Screen” ).

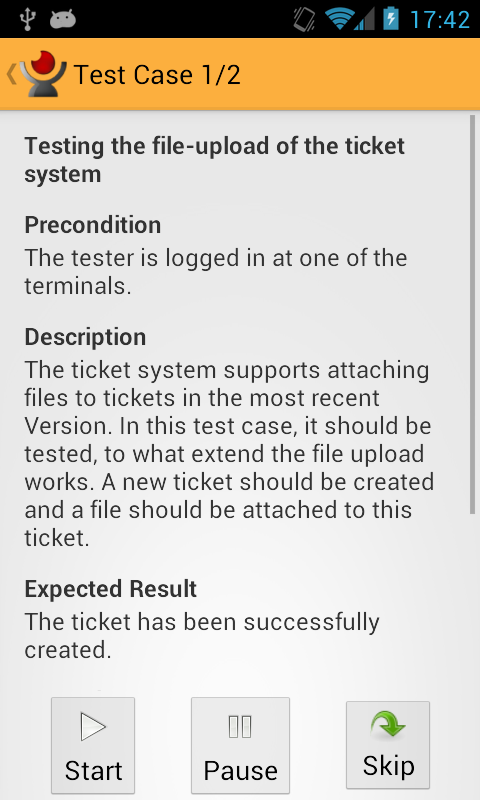

Figure 5.1. The Test Case Screen

The Test Case Screen


This screen acts as an overview of the progress of the Test Suite execution. In the Action Bar at the top, the current Test Case number and the total number of Test Cases in this Test Suite is displayed. Below the Action Bar is the name of the Test Case and the list of Test Case Properties (See the official Klaros-Testmanagement documentation at http://www.klaros-testmanagement.com/files/doc/html/User-Manual.Define.Main.Test-Cases.Details.Edit-TestCases.html ). If the value of a property is empty, this property isn't shown in the list.

At the bottom of the screen are three buttons, labeled Execute , Pause and Skip . Touching Execute starts the execution of the Test Case and brings the user to the first Test Case Step in the Test Case Step Screen . Touching Pause pauses the execution of the Job and brings the user back to the Job List. It is possible to resume the execution of the Job at a later point of time. Touching Skip skips this Test Case. The user is presented the option to skip the Test Case permanently or to execute it later (See figure Figure 5.2, “The Test Case Screen”)

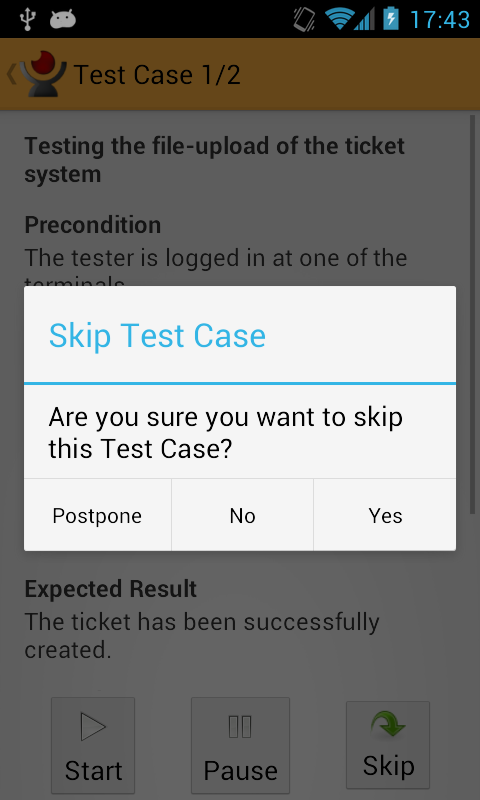

Figure 5.2. The Test Case Screen

The Test Case Screen
