9.2. Reports

9.2. Reports
	Chapter 9. Evaluate

9.2.1. Predefined Reports

On the Reports page, predefined reports can be generated as PDF or HTML files. The Klaros-Testmanagement Enterprise Edition also allows configurable reports to be created, customized and retrieved as PDF or Excel files.

9.2.1. Predefined Reports

9.2.1.1. Test Environment Report
9.2.1.2. System under Test Report
9.2.1.3. Test Suite Report
9.2.1.4. Test Run History Report
9.2.1.5. Configurable Reports

Figure 9.10. The “Reports” Page

The predefined reports are:

The “Test Environment Report”
The “System under Test Report”
The “Test Suite Report”
The “Test Run History Report”

The predefined reports can be generated in two different file formats:

PDF
HTML

Clicking on one of the file type icon will generate the report in the selected format.

The upper part of the Reports page shows a table with the available predefined reports:

9.2.1.1. Test Environment Report

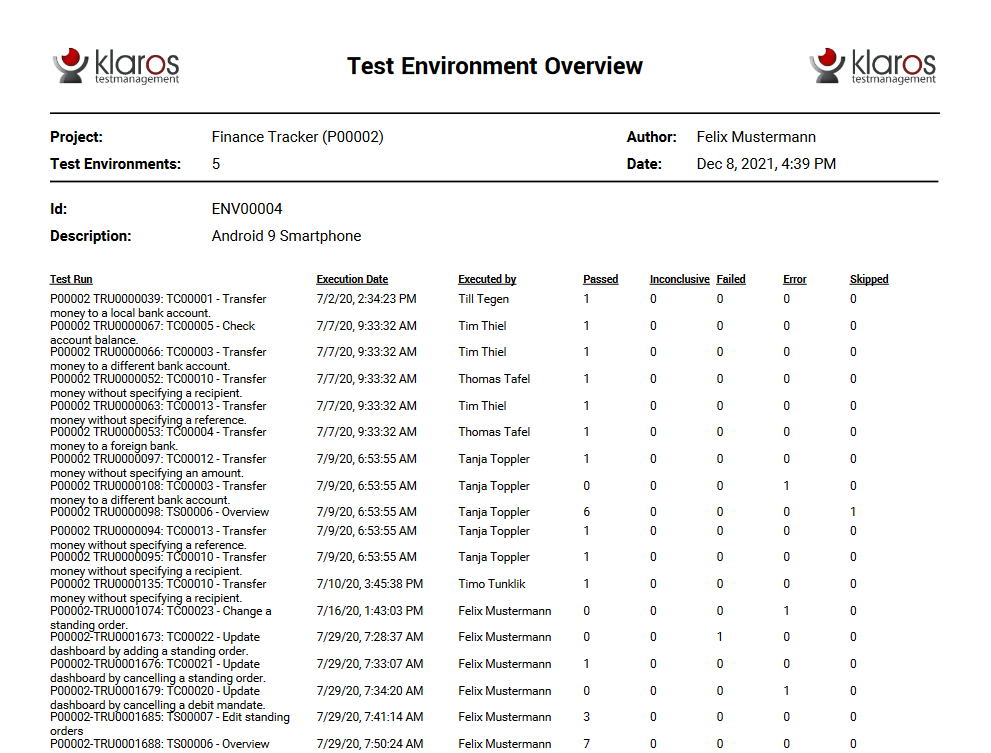

The Test Environment Report shows all test runs of a single test environment, including the execution date, executor and the quantity of Passed, Failure, Error, Inconclusive and Skipped results. An example of the report is shown in Figure 9.11.

Figure 9.11. The “Test Environment” Report

9.2.1.2. System under Test Report

The System under Test Report shows all test runs of a single system under test, including the execution date, executor and the quantity of Passed, Failure, Error, Inconclusive and Skipped results. An example of the report is shown in Figure 9.12.

Figure 9.12. The “System under Test” Report

9.2.1.3. Test Suite Report

The Test Suite Report shows all test cases including team, creator, priority and name, for each test suite in the active project. An example report is shown in Figure 9.13.

Figure 9.13. The “Test Suite Overview” Report

9.2.1.4. Test Run History Report

The Test Run History Report shows all test runs of a single system under test, including the execution date, executor and the quantity of Passed, Failure, Error, Inconclusive and Skipped results in a given time period.

Figure 9.14. The “Test Run History” Report

9.2.1.5. Configurable Reports

In addition to predefined reports, the Klaros-Testmanagement Enterprise Edition can create PDFs and Excel files from user-defined reports. Creating user-defined reports is explained in Section 10.2, “Report Templates”. Clicking on the and icons will generate the reports.

	Note
	Clicking on one of the icons or opens a dialog where report parameters can be set if any are needed for generating.

Figure 9.15. Generate a Parameterized Report

	Note
	The OK button becomes active after entering all required parameters.
