2.6.2. Executing Test Suites

Next we will execute our test suite. The process is very similar to executing a test case. Additionally, an overview screen will appear at the beginning.

  1. Select the entry Run Test Suites under Execute in the side menu.

  2. Click on the icon for the test suite Tutorial Hardware Suite.

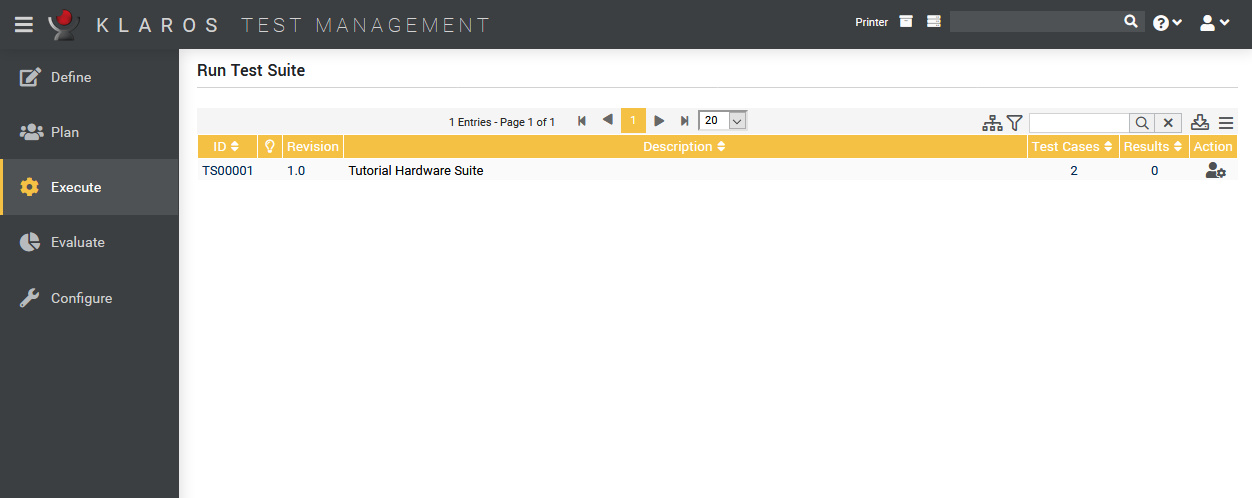

    The Run Test Suite page

    Figure 2.12. The Run Test Suite page


  3. Select Average Room Temperature as the Test Environment

    The Run Test Suite page

    Figure 2.13. The Run Test Suite page


  4. Select Printer Model 1 as the System under Test.

  5. Press the Execute button.

  6. Press the Start button in the manual test runner.

    The Test Suite Runner

    Figure 2.14. The Test Suite Runner


  7. Click the green icon for all steps.

  8. Confirm the following dialog by clicking the OK button.

  9. Repeat for the second test case.

  10. Press the Close button.
