6.5. Systems under Test

6.5.1. Overview Page
6.5.2. Details Page

With System under Test the system/object is designated, which is to be tested. Other common terms for this are test item or test object. This can be identified, for example, by the version number of the tested software. This chapter shows how to create and edit systems under test.

6.5.1. Overview Page

The overview page displays all existing systems under test in the selected project in a table. New systems under test are created here.

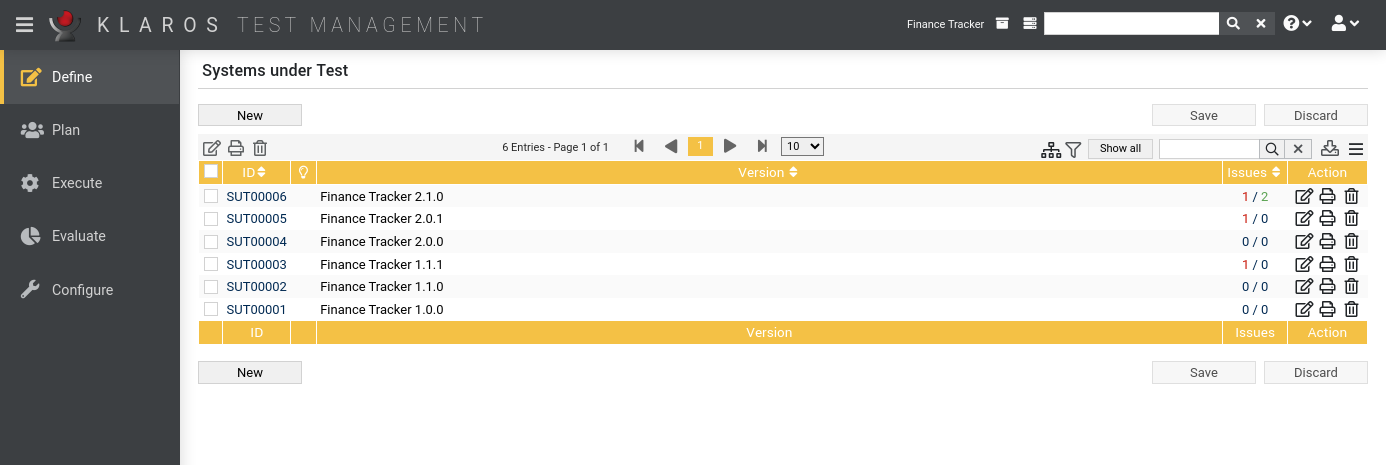

The “System under Test” Page

Figure 6.30. The System under Test Page


The table shows the following values:

ID

Assigned automatically.

Additional Information

A tooltip appears when the cursor is placed over the icon shown here.

Description

The description of the system under test.

Actions

The executable actions.

The Description entry can be edited directly in the table rows by clicking in the corresponding field.

6.5.1.1. Creating a new System under Test

By clicking on the button New a new empty table row will appear. Now, the Version of the system under test can be defined.

With Save the new system under test is created and saved. The ID of the system under test (SUT00001) is automatically assigned by Klaros-Test­management. Click on the ID SUT00001 to get to the detail page of the system under test

With New several table rows can be created and edited at the same time. Only when clicking on Save the data is stored in the database.

With Discard all changes are undone.

[Note] Red IDs

All rows with red IDs have been changed and are not yet saved!

6.5.1.2. Actions

The following actions can be performed in the action column:

  •   Edit
  •   Open print view
  •   Delete

If a system under test has been deleted, it is initially marked with a deletion marker and is only visible to administrators. For deleted systems under test, the following actions are available instead of Delete:

  •   Restore (only Administrator)
  •   Irrecoverably remove the system under test from the database

6.5.1.3. Bulk Actions

Certain actions can also be applied to several systems under test at the same time. To do this, select the systems under test to which the action is to be applied in the leftmost column.

The following bulk actions are supported for systems under test:

  •   Edit
  •   Open print view
  •   Delete
  •   Restore (only Administrator)
  •   Irrecoverably remove the system under test from the database (only Administrator).
  •   Assign to a category (appears only after a category has been created).

Bulk actions are described in detail in Section 5.2.3.1.5, “Bulk Actions”

6.5.1.4. Table Operationen

The following operations can be performed in the line above the table on the right:

  •   Categorize
  •   Filter / Sort
  • Show all / Only active (only Administrator)
  •   Search
  •   Export
  •   Column selection

All operations are described in detail in Section 5.2.3.1, “Overview Page”.

6.5.2. Details Page

Each system under test has its own detail page with several additional tabs. Clicking on the ID of a system under test or on the icon on the right in the action column takes you to the tab that was selected last. When called for the first time, this is the Overview tab.

The following tabs are available: Overview, Properties, User Defined, Attachments, Jobs, Results and Changes.

The “Overview” Tab

Figure 6.31. The Overview Tab


6.5.2.1. Actions

On the detail pages, there are additional icons in the top right corner of the header. The following actions can be performed here:

  Open print view

A print-ready view of the system under test can be created here. With a click on the icon this opens in a new browser tab.

Print views are described in detail in Section 5.2.3.2.1, “Print Pages”.

  Create Bookmarks

Each individual detail page can also be reached directly via a hyperlink. By clicking on the icon this link is copied to the clipboard.

The creation of bookmarks is described in detail in Section 5.2.3.2.2, “Bookmarks”.

    Browse

Use the green arrows at the very top right to switch between the systems under test present on the previous page.

6.5.2.2. Overview

The “Overview” Tab

Figure 6.32. The Overview Tab


All data displayed here always refer to the currently displayed system under test.

The following values are displayed on the overview tab:

Success

The overall success rate of all test cases. A success rate of 100% means that the latest test run for every test case has been successful. Even if a test case has been successfully executed in the past, only the latest result is considered for the success rate.

Progress

The progress rate shows how many test cases have been executed. In contrast to the success rate, the progress rate only takes into account whether a test case was executed at least once, regardless of its result.

Compliance

The compliance rate shows how many test cases assigned to requirements have been successfully executed.

Coverage

The coverage rate shows how many test cases assigned to requirements have been executed at least once. In contrast to the compliance rate, the coverage rate considers only if a test case has been executed at least once in the iteration, regardless of its result.

Automation Rate

The automation level indicates the percentage of test cases that can be executed automatically.

Success history diagram

This chart shows the historical evolution of the success, progress, conformance, and coverage rate of this system under test for the selected test environment.

The timeline is automatically adjusted to the existing data.

In the lower area there is a table with the overview of the results for this test system broken down by test environment. In the Action column, the test environment for the above diagram can be selected.

6.5.2.3. Properties

This tab ( Figure 6.33) allows the user to view or change the following attributes of the system under test:

Version

The version of the system under test.
The “Properties” Tab

Figure 6.33. The Properties Tab


6.5.2.4. User-Defined

You can create your own fields to meet individual requirements. For further information please refer to Section 5.2.3.2.4, “User Defined Properties”.

6.5.2.5. Attachments

You can add any files as attachments to a system under test. For more information, see Section 5.2.3.2.6, “Attachments”.

6.5.2.6. Issues

This view lists all issues that are associated with this system under test.

The “Issues” Tab

Figure 6.34. The Issues Tab


The table shows the following values:

ID

The ID of the issue in the external issue management system.

System

The external issue management system of this issue.

Additional Information

A tooltip appears when the cursor is placed over the icon shown here.

Summary

The summary of the issue.

Created

The date when the issue was created.

Created by

The user who created the issue.

Assigned

The user to whom the issue is assigned.

Priority

The priority of the issue. The possible values are specified by the external issue management system.

Status

The status of the issue. The possible values are specified by the external issue management system.

Actions

The executable actions.
6.5.2.6.1. Creating a new Issue

Clicking New opens the Issue Details page ( Section 9.6.6, “Issue Details (Creating a new Issue)”), where new issues can be created and linked to the system under test. Clicking Link links existing issues to the system under test ( Section 9.6.7, “Link Issue”).

6.5.2.6.2. Action

The following actions can be performed in the action column:

  •   Edit
  •   Browse
  •   Delete

6.5.2.7. Iterations

This page lists all iterations to which this system under test is assigned.

The “Iterations” Tab

Figure 6.35. The Iterations Tab


This system under test can be assigned to one or more iterations by clicking the Assign button. This opens up a dialog, where multiple iterations can be selected at once.

The following bulk actions are supported for iterations:

  •   Remove

The detail page of an iteration shows a list of all systems under test that are assigned to it, as shown in section Section 6.2.2.7, “Systems under Test”.

6.5.2.8. Jobs

The page displays the list of jobs assigned to the selected system under test.

The following values are displayed in the table:

ID

Assigned automatically.

Summary

The summary of the job

Priority

The priority of the job. Possible values are Trivial, Minor, Major, Critical, Blocker

State

The status of the job. Possible values are New, Reopened, In Progress, Resolved, Closed, Rejected.

Progress

The percentage of executed test cases of this job and its subjobs.

Success

The success rate of the executed test cases of this job and its subjobs.

Due Date

The date on which this job is due to be finished.

Assigned

The user to whom the job is assigned.

Action

Available actions are:   Edit,   Open Print View und Execute For the possible representations for Execute, see Section F.2.2, “Execution Actions”.

6.5.2.9. Results

The results tab is further divided into a Test Runs, Test Case Results and a Test Suite Results tab, showing the test results related to this system under test as described in Section 5.2.3.2.7, “Test Runs and Results”.

6.5.2.10. Changes

The tab Changes shows the change history of this system under test.

For a detailed description of the Changes view, see Section 5.2.3.2.8, “Change History”.
